Mô tả DJI Ultimate Flight w/GS

DJI Ultimate Flight is the next experience in flight control for the DJI Phantom Vision and Vision+.Website: http://www.kenargo.com/AndroidApps/UltimateFlightDocumentation: http://www.kenargo.com/AndroidApps/UltimateFlight/documentation.htmlSupport Group: https://groups.google.com/forum/?hl=en#!foru... xem thêm DJI Ultimate Flight is the next experience in flight control for the DJI Phantom Vision and Vision+.

Website: http://www.kenargo.com/AndroidApps/UltimateFlight

Documentation: http://www.kenargo.com/AndroidApps/UltimateFlight/documentation.html

Support Group: https://groups.google.com/forum/?hl=en#!forum/dji-ultimate-flight

Phantom 3 version: https://play.google.com/store/apps/details?id=com.kenargo.djiultimateflight3

Moverio version now available: http://coptershop.com/pages/moverioapp.

•Video and camera controls on par with Vision App and more.

•Auto video start/stop – recording start/stop with the Phantom motors.

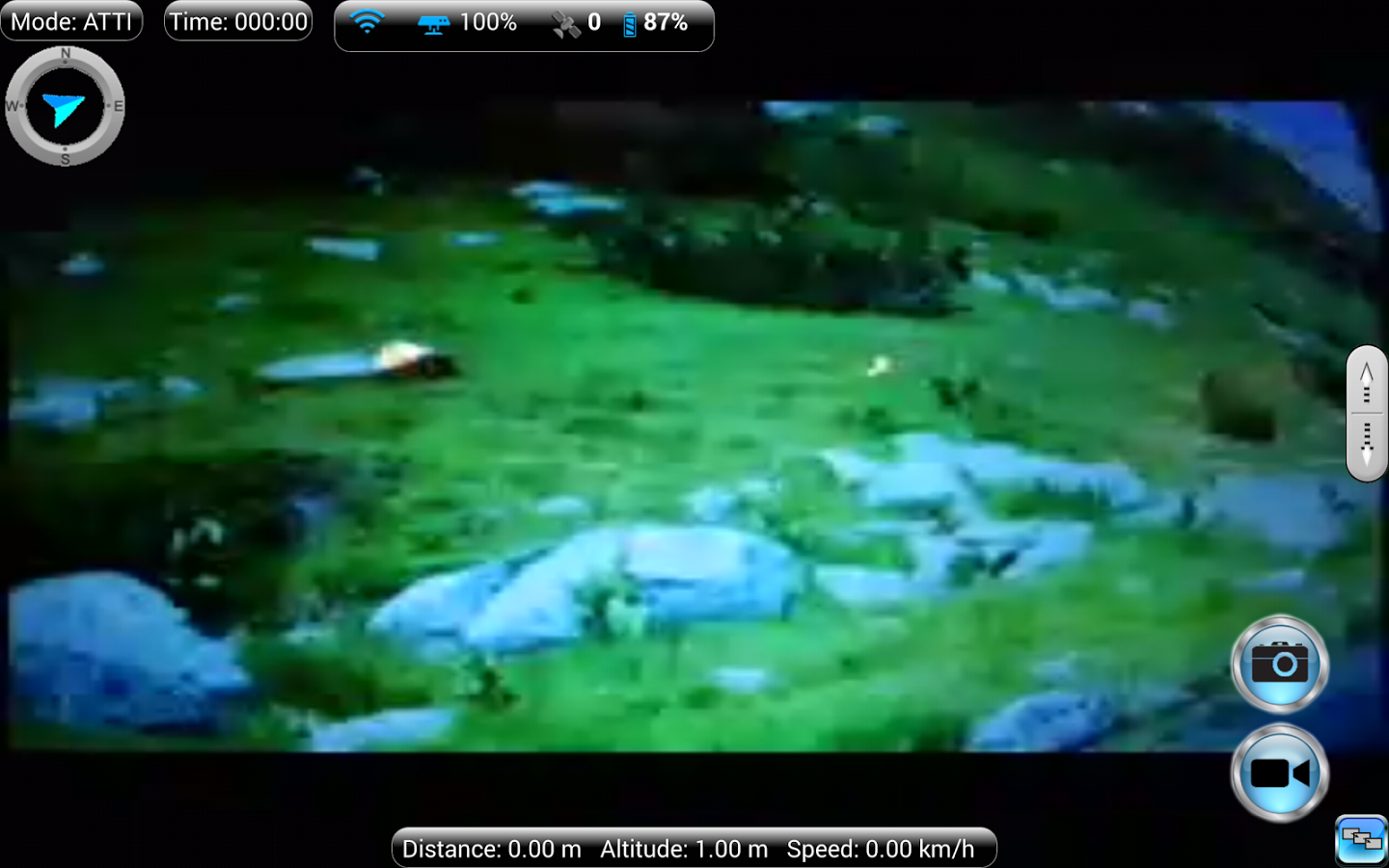

•Live video

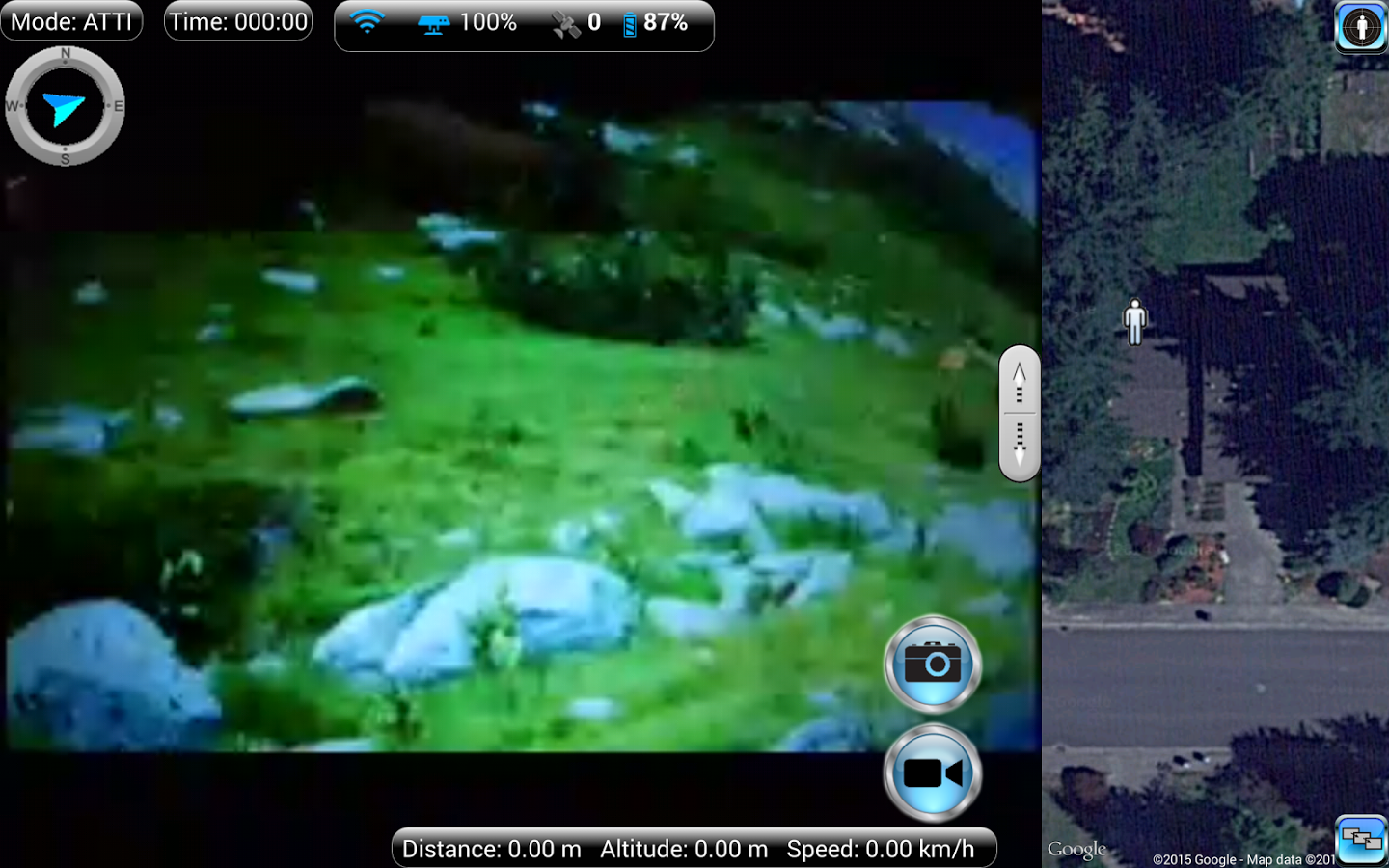

• Split screen, video/map, Full video, Full map

•Map shows Pilot, Phantom and home

•Map auto-orients during flight

•Flight safety – the app includes pre-flight safety checks:

•Flight battery limit uses smart battery information to calculate and display a “circle” that can be used as an indicator for the turn-around point for flight.

•Cached maps will be usable for both free-flight as well as waypoint flight missions.

•Phantom latitude and longitude displayed

•Active voice feedback system includes configurable settings to report flight status and Phantom health information at regularly defined intervals.

•Phantoms that have had camera and gimbal replacements using the DJI Zenmuse H3-3D, 3-Axis Gimbal with GoPro camera will be supported in a screen-efficient manner. Since this configuration does not allow for certain camera operations to be performed the screen controls for camera will be removed resulting a more efficient display without the additional controls unneeded for this configuration.

•Variable speed gimbal

•Onscreen information displays

•Phantom status: flight timer, satellite count, Wi-Fi strength and batter levels of the Phantom and Wi-Fi extender will be available on screen

•On screen camera orientation display

•Phantom bearing and bearing indicator towards home with easy-point allowing the pilot to rotate the Phantom until Phantom bearing aligns to home point indicator and fly towards home.

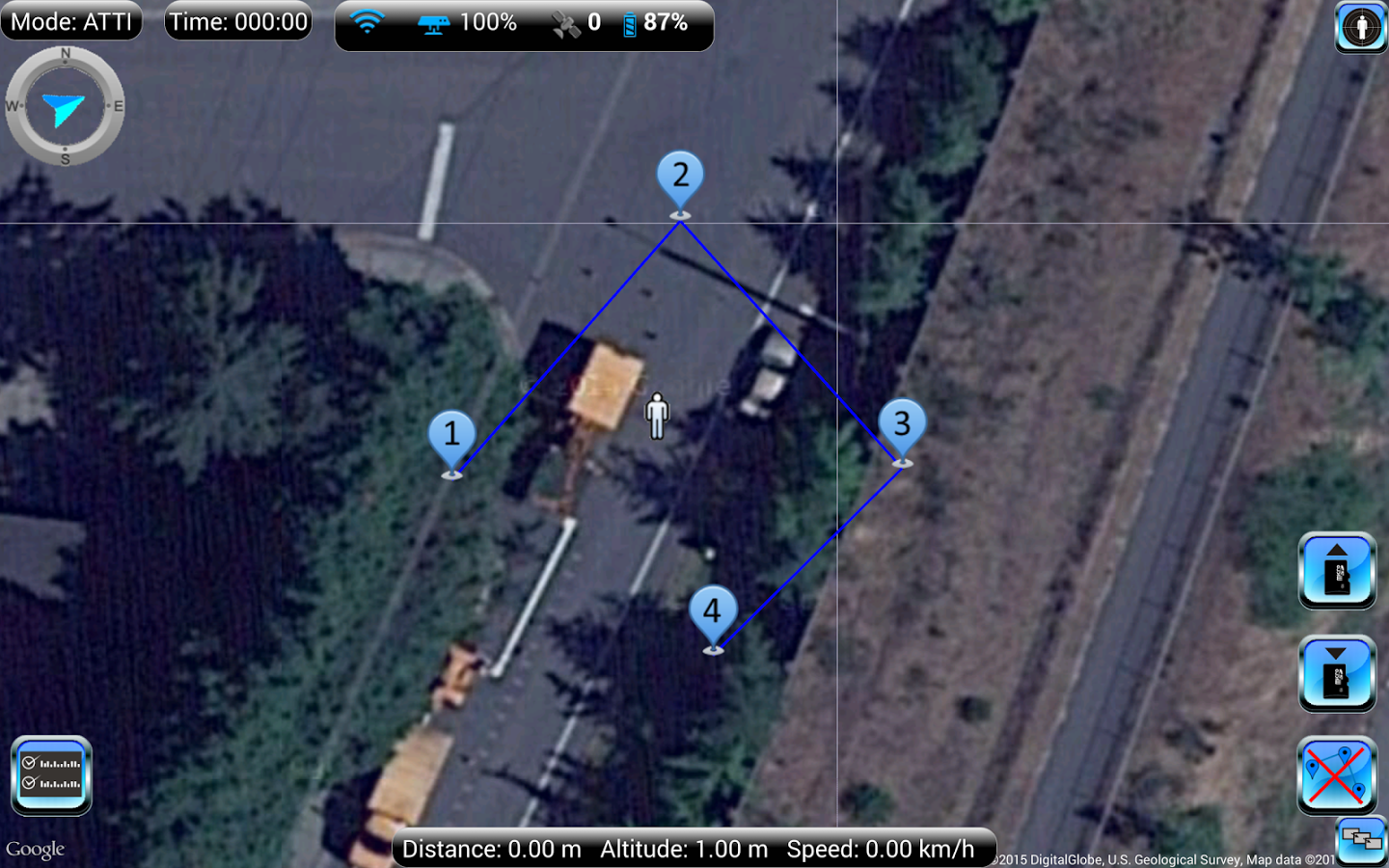

•Ground Station flight mission

•Waypoint missions can be designed at a comfortable location for the pilot and saved on the device. Once on location the mission can be loaded and flown. Waypoint missions are saved using a comma-delimited format and can be edited using the app or the users favorite text editor

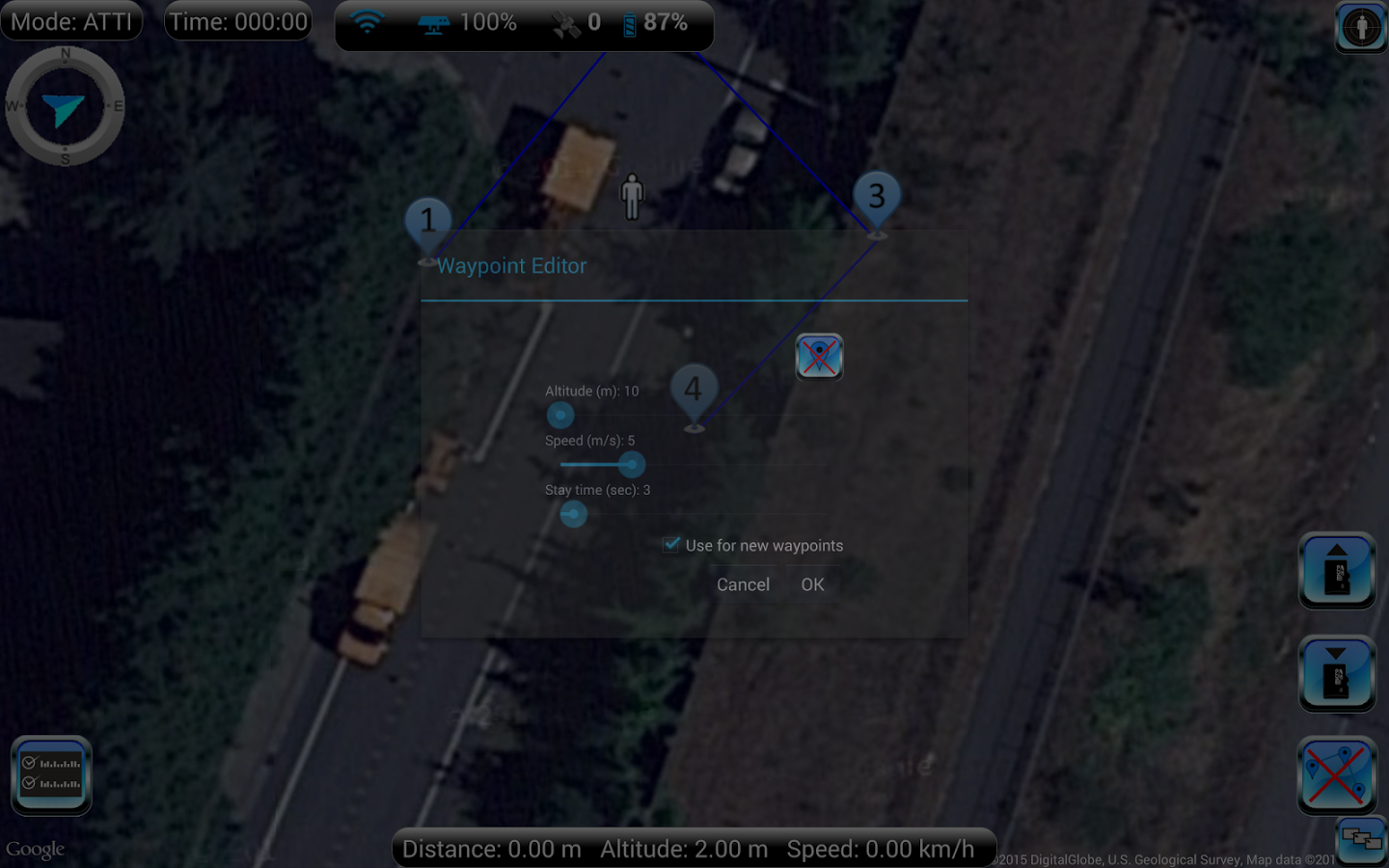

•Waypoint editor will extend the ability to individually control speed, altitude and stay-time for each waypoint individually.

•Waypoint editor will include an easy-copy mode, enabling the user to setup one waypoint, edit the settings based on the flying location and to use those settings as a temporary default for new waypoints in the same mission. In effect this creates a temporary override of configured waypoint defaults

•Mission limits are enabled by default that match DJI Vision Ground Station but will be configurable by the user.

•Waypoint flight protection will inform the user of issues identified in a waypoint mission.

•Waypoint missions can be started from the ground, with motors on or off or after take-off while in the air based on the user’s preference.

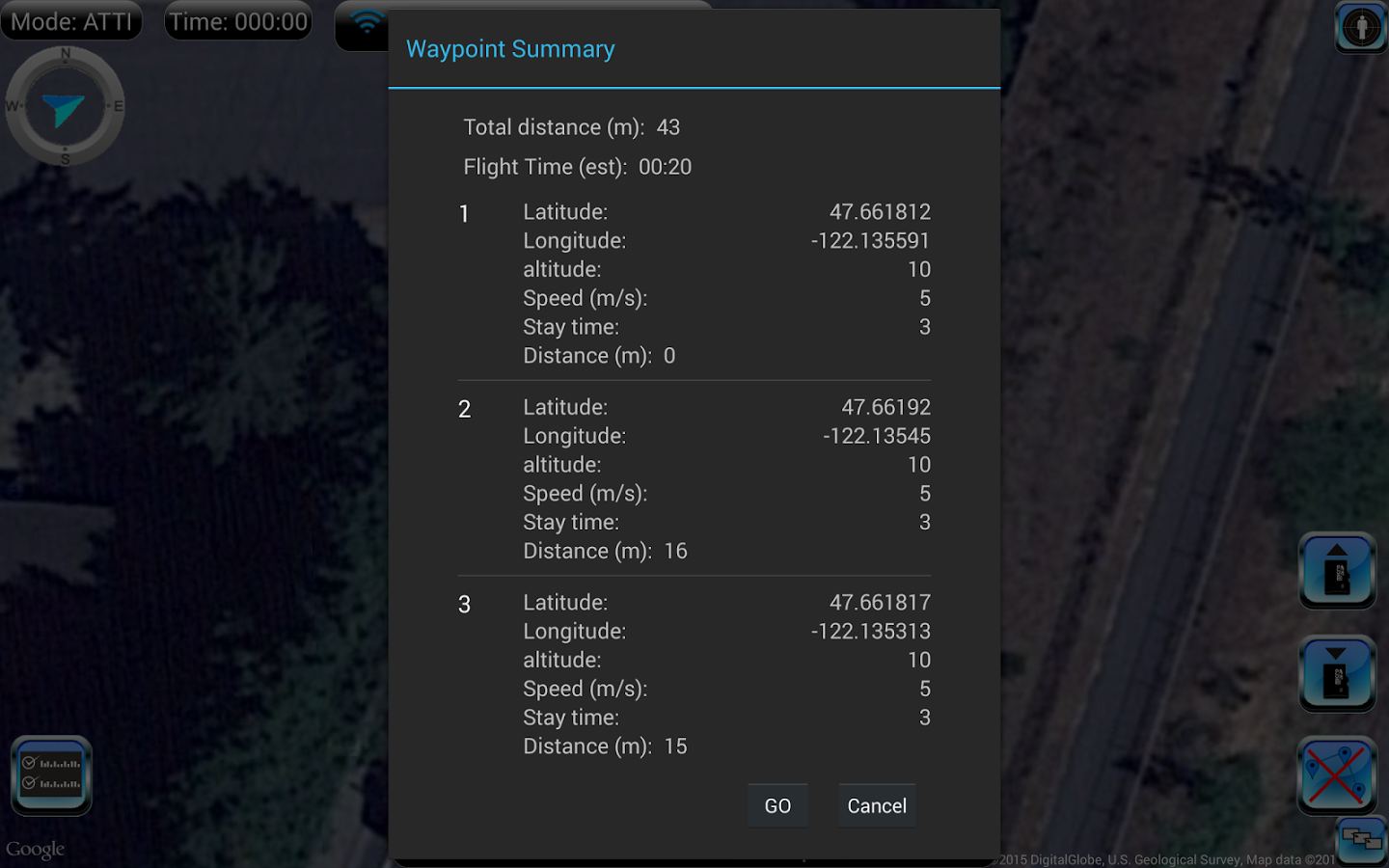

•Waypoint mission summary will be displayed to the user prior to waypoint flight. The user will be able to review the following and choose to cancel or fly the mission

•2 flight logs: (1) Flight summary, this one-line log will include summary information per the flight (e.g. min/max satellite, starting and ending location, battery min/max, etc.) (2) Flight tracking log will include detailed flight information as the Phantom flies as reported by the DJI SDK. This details log can be used to review the flight offline at a larger time.
